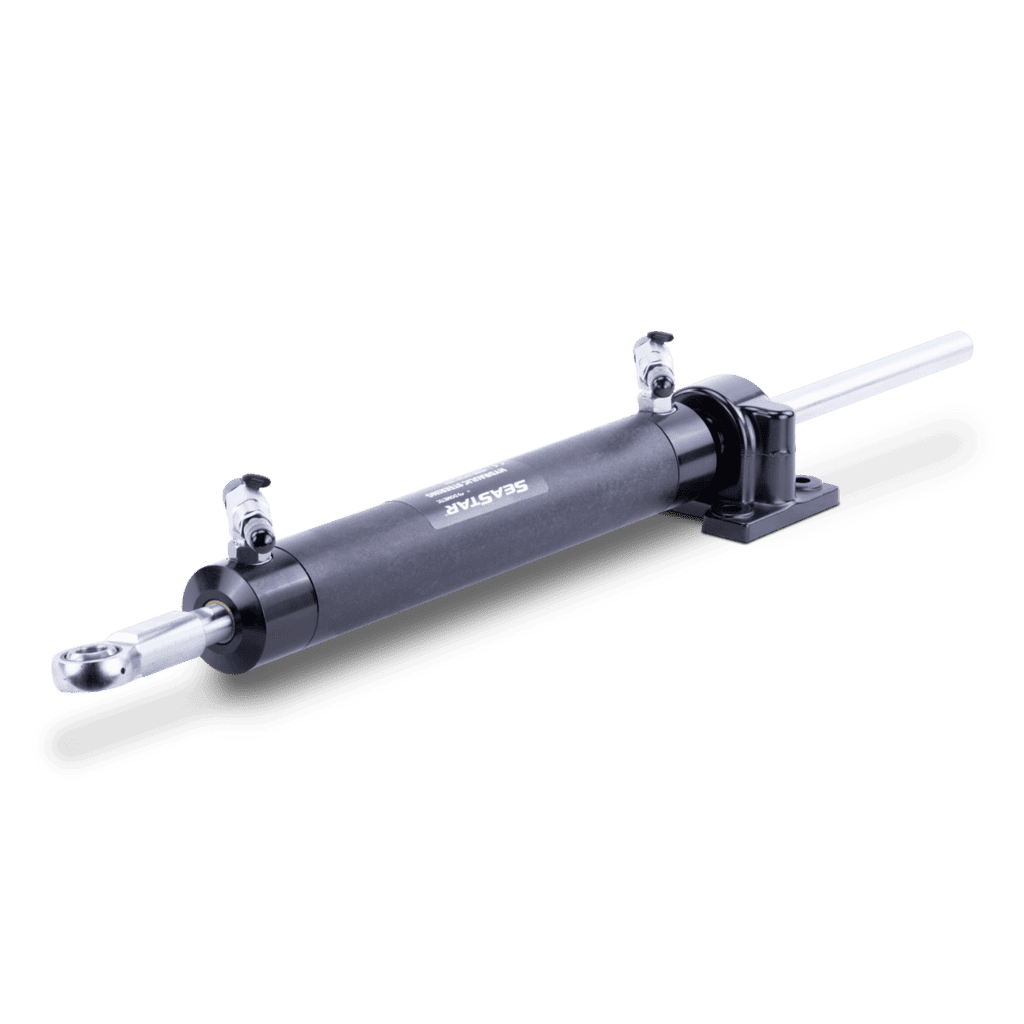

Seastar Hydraulic Cylinder Inboard / Stern Drive HC5314-3

Description SeaStar Inboard Steering Cylinder BA150-7ATM HC5314-3 Unmatched comfort and control. Only with SeaStar® steering. The most popular inboard hydraulic steering system offers smooth, super efficient steering designed for today’s inboard powered vessels to 15 metres. It’s the first choice of leading OEMs, with a wide range of helm and cylinder displacements to cover most applications. Features: • Easy installation for single and dual rudder vessels • Easy connection of additional helms • Easy autopilot interface • Bronze or anodised alloy cylinders and chromed stainless steel push rods for reduced friction, smoother action and extended life of seals • Meets NMMA/ABYC/BIA standards Selecting an Inboard Hydraulic Steering System From the order guide select the system number appropriate for the vessel based on: a. Hull type – displacement or planing b. Length of vessel c. Number of engines/rudders d. Usage of vessel Standard 3⁄4″tapered steering shaft Regular duty alloy cylinder Accepts steering wheels to 660mm (28″) 510mm (20″) tilt 6 turns lock to lock Torque 82.0 kg-mm 7117 in-lb   Code Part No Model Cylinder Bore Dia. (in) Cylinder Bore Dia. (mm) Shaft Dia. (in) Shaft Dia. (mm) Stroke (in) Stroke (mm) Volume (cc) Volume (in³) Torque (in-lb) Torque (kg-mm) 291064 HC5314 BA150-7ATM 1.50 38.1 0.625 15.9 7 178 167.5 10.2 7117 82.0
