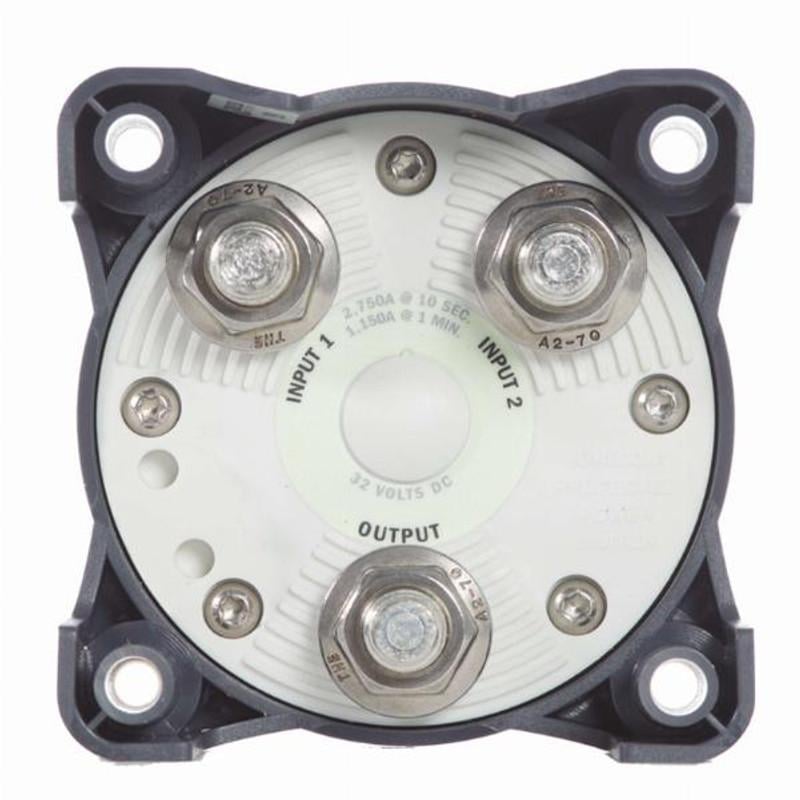

Description BLUE SEA HD-Series Heavy Duty Selector Battery Switch / BS-3002 Switches isolated battery banks to all loads or combines battery banks to all loads. HIGHLIGHTS Make-before-break contact design allows switching between battery banks without power interruption. Ignition protected—safe for installation aboard gasoline powered boats. Case design allows surface or rear panel mounting. Accepts two 4/0 AWG (95mm²) battery cables. SPECIFICATIONS PART NUMBER: BS-3002 SWITCH TYPE: Selector 4 Position COLOR: GREY SWITCH POSITIONS: 4 BATTERY COMBINE: YES ALTERNATOR FIELD DISCONNECT: YES MAXIMUM VOLTAGE: 32V DC TERMINAL STUD TORQUE: 220 in-lb (24.86 Nm) CONTINUOUS RATING: 500A INTERMITTENT RATING: 700A (5 min) CRANKING RATING 30 SEC: 1600A BATTERY INPUTS: 2 CABLE CLEARANCE FOR 4/0 AWG CABLES: 1.10″ (27.94 mm) CABLE QUANTITY TO MEET RATINGS: Two Cables / Terminal CABLE SIZE TO MEET RATINGS: 4/0 AWG (120mm²) MOUNTING HOLES: Accept 1/4″ (M6) Screw STUD MATERIAL: TINNED COPPER TERMINAL STUD SIZE: 1/2″ (M12) WEIGHT: 1.25 lb (0.57 kg) OVERALL DIMENSIONS (LENGTH x WIDTH x HEIGHT): 89mm x 162mm x 217mm
