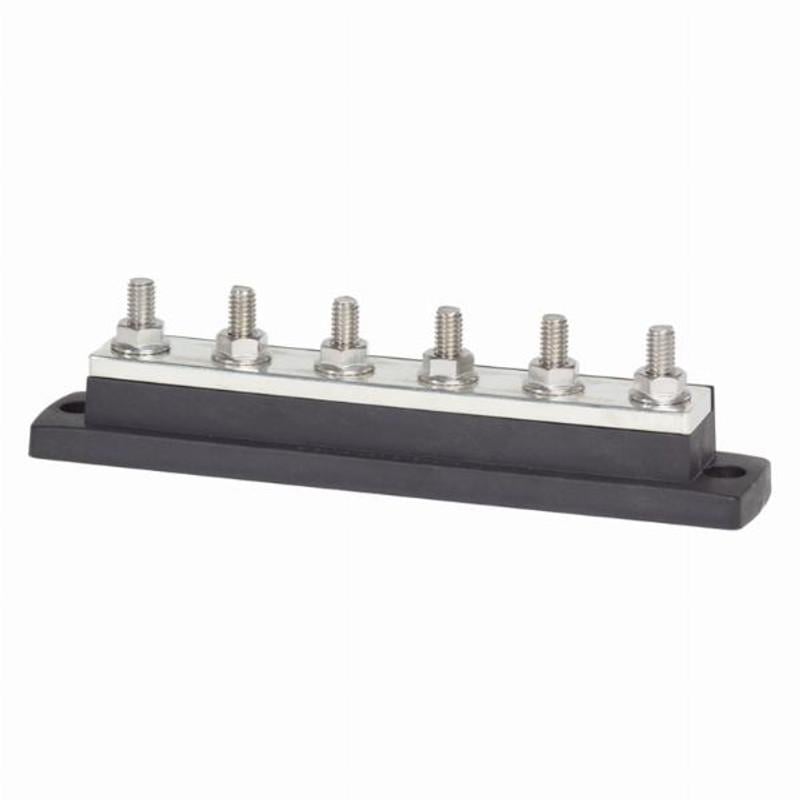

Description BLUE SEA MaxiBus 250A BusBar – Six 5/16″-18 Studs / BS-2126 Busbars are used to consolidate multiple wires or feed multiple circuits. Now with insert-molded stainless steel studs and optional fully enclosed insulating base and cover. HIGHLIGHTS Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact. Raised bus provides easy access to multiple wires on a single stud UL 94-V0 rated base material resists high heat. Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces. SPECIFICATIONS PART NUMBER: BS-2126 MAXIMUM VOLTAGE: 300V AC / 48V DC NUMBER OF TERMINAL STUDS: 6 TERMINAL TYPE: 5/16″-18 Stud CONTINUOUS RATING: 250A BASE MATERIAL: UL 94-V0 Rated, Glass Reinforced Thermoplastics BUS MATERIAL: Tin-Plated Copper CDA 110 / UNS 11000 RECOMMENDED STUD TORQUE: 132 in-lb (14.91 N·m) WEIGHT: 0.80lb (0.36 kg) Code Take offs Length (mm) Width (mm) Height (mm) BS-2126 6 197 38 43 BS-2127 4 149 38 43 Accessories Description BS-2718B Cover MaxiBus 2105/2126 BS-2719B Cover MaxiBus 2127/2128
