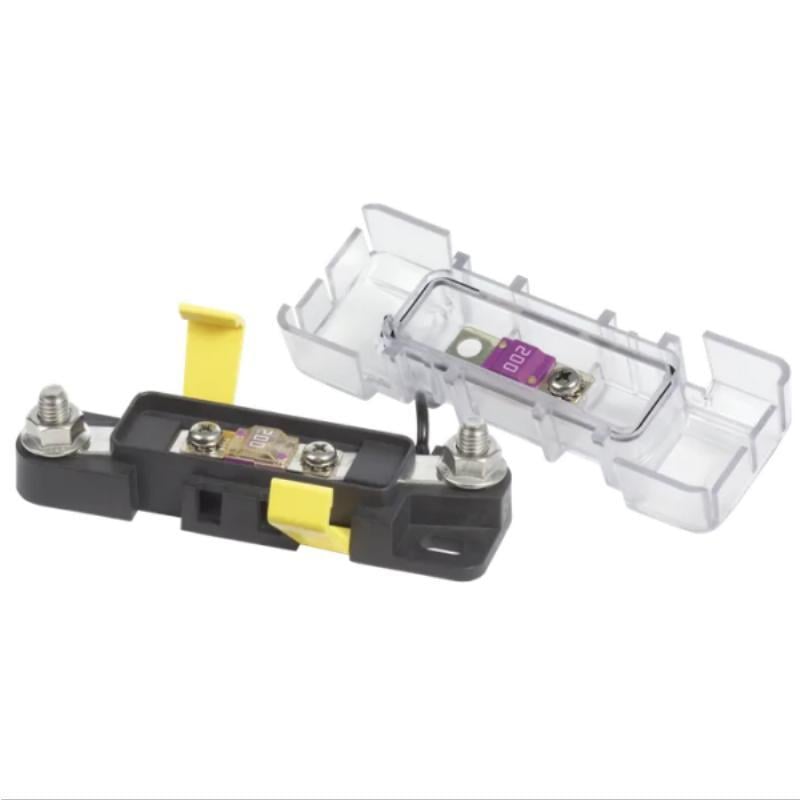

Description BLUE SEA Safety Fuse Block AMI / MIDI / BS-7720 HIGHLIGHTS Ignition protected for installation aboard gasoline or diesel powered boats. Sealed cover protects fuses from the harsh marine environment. Insulating cover satisfies ABYC/USCG insulation requirements. Cover breakouts allow wire access in any direction. 200A maximum with 4/0 cable. Accepts Blue Sea Systems Square Format standard or custom label. Fuses sold separately. SPECIFICATIONS PART NUMBER: BS-7720 MAXIMUM AMPERAGE: 300A MAXIMUM VOLTAGE: 32V DC STUD SIZE: M8 x 1.25 FUSE CREW: M5 x 0.8 RECOMMENDED SCREW TORQUE: 27 in-lb (3.05 N·m) RECOMMENDED STUD TORQUE: 120 in-lb (13.56 N·m) RING TERMINAL SIZE: M8 (5/16″) WEIGHT 0.07 kg (0.15 lb) OVERALL DIMENSIONS (LENGTH x WIDTH x HEIGHT): 98mm x 185mm x 45mm
