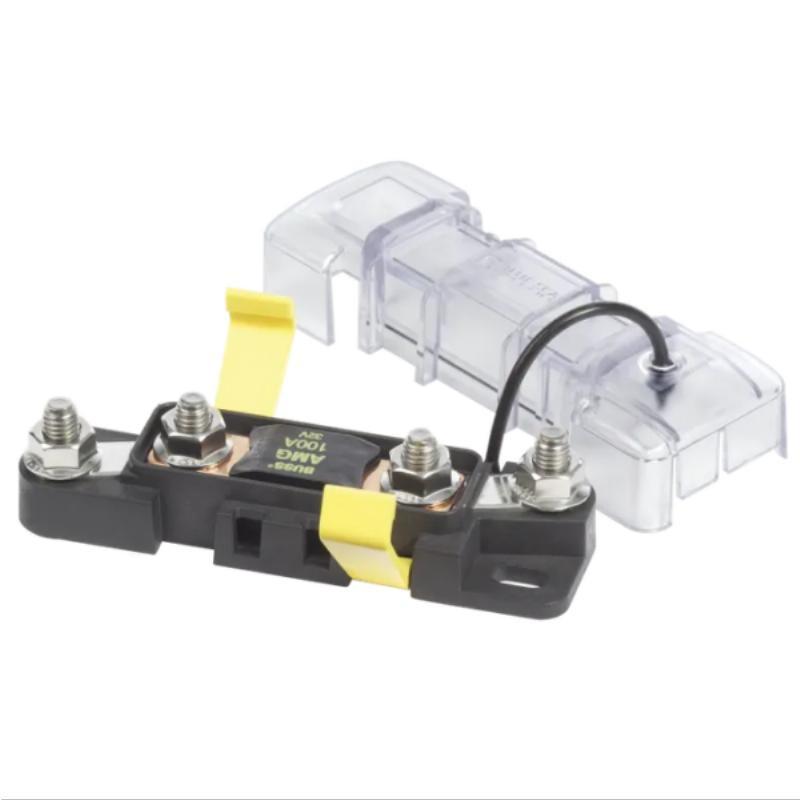

Description BLUE SEA Safety Fuse Block MEGA or AMG / BS-7721 HIGHLIGHTS Ignition protected for installation aboard gasoline or diesel powered boats. Sealed cover protects fuses from the harsh marine environment. Insulating cover satisfies ABYC/USCG insulation requirements. Cover breakouts allow wire access in any direction. 300A maximum with 4/0 cable. Accepts Blue Sea Systems Square Format standard or custom label. Fuses sold separately. SPECIFICATIONS PART NUMBER: BS-7721 MAXIMUM AMPERAGE: 300A MAXIMUM VOLTAGE: 32V DC STUD SIZE: M8 x 1.25 RECOMMENDED STUD TORQUE: 120 in-lb (13.56 N·m) RING TERMINAL SIZE: M8 (5/16″) WEIGHT 0.07 kg (0.15 lb) OVERALL DIMENSIONS (LENGTH x WIDTH x HEIGHT): 99mm x 184mm x 45mm
