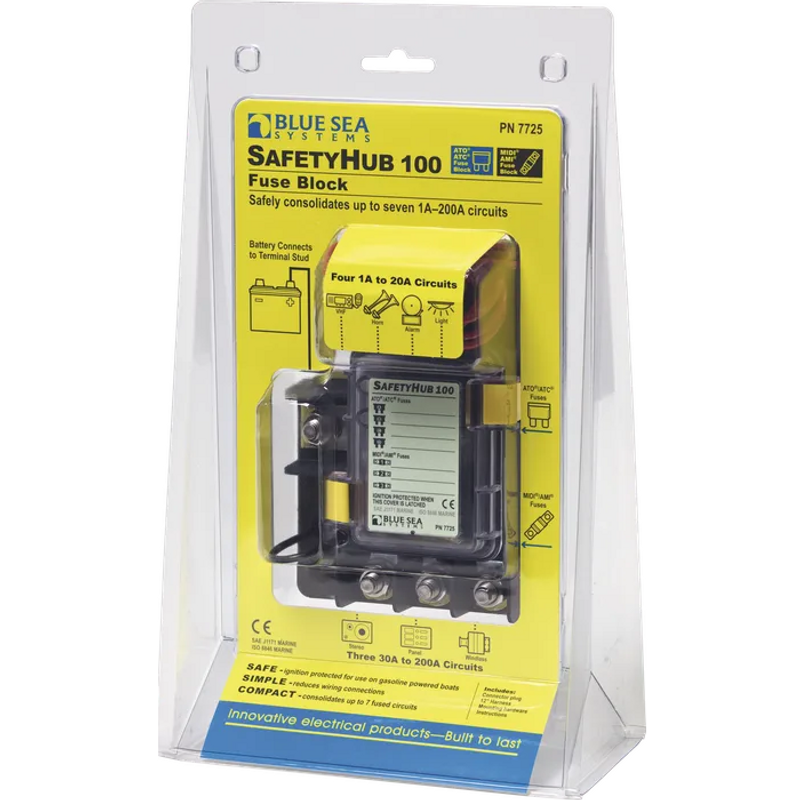

Description BLUE SEA SafetyHub 100 Fuse Block with Harness / BS-7725 The SafetyHub 100 combines an ignition protected fuse block and an integrated connecting plug. It is safe for use on gasoline powered boats, reduces wiring connections, and consolidates up to seven fused circuits. HIGHLIGHTS Three 30A−200A MIDI/AMI fuses [sold separately] ideal for high-amp circuits including panel feeds, windlasses, and stereo amplifiers Four 1A−20A ATO/ATC fuses [sold separately] ideal for circuits including bilge pumps, alarms, and clock memory Sealed cover protects fuses from the harsh marine environment: IP66 rating—protected against powerful water jets Integrated connector plugs eliminate loose wires and provide a secure, waterproof connection Ignition protected fusing meets Coast Guard and ABYC requirements for installation on gasoline or diesel powered boats SPECIFICATIONS PART NUMBER: BS-7725 CIRCUITS: 7 STUD SIZE: M8 x 1.25 OPERATING VOLTAGE: 12V, 24V, 32V AMPERAGE MAXIMUM OPERATING – COMBINED: 280V RECOMMENDED RING TERMINAL: M8 (5/16″) SCREW TORQUE, 8-32: 18in-lb (2.03 Nm) SCREW TORQUE, M5: 27in-lb (3.05 Nm) STUD TORQUE: 180 in-lb (20.34 Nm) WEIGHT 1.45 kg (3.20 lb) OVERALL DIMENSIONS (LENGTH x WIDTH x HEIGHT): 94mm x 173mm x 275mm
