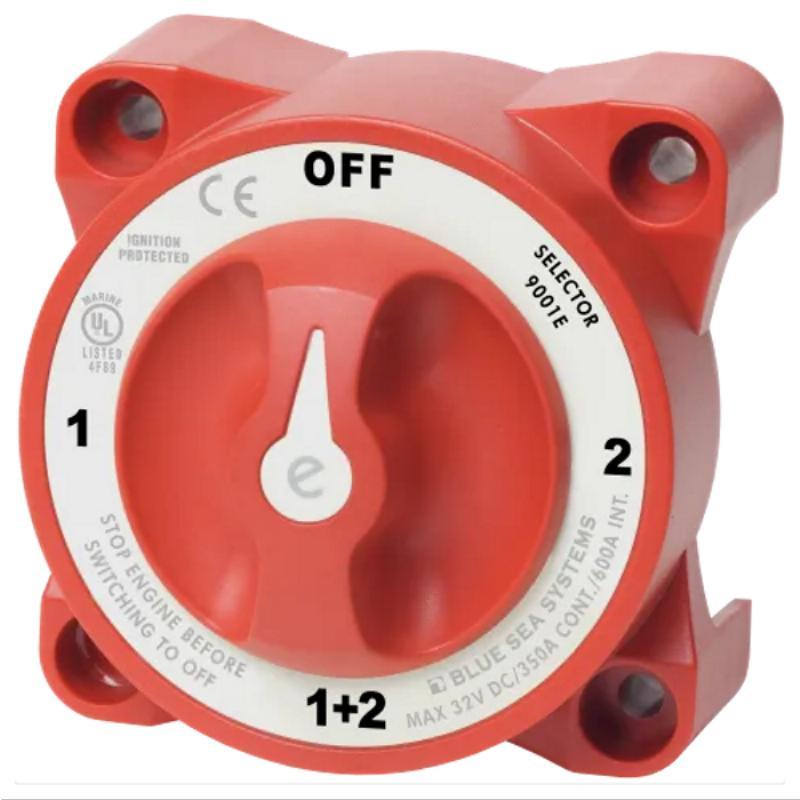

Description BLUE SEA SYSTEMS e-Series Battery Switch – Selector 4 Position / BS-9001E Switches isolated battery banks to all loads or combines battery banks to all loads. HIGHLIGHTS Make-before-break contact design allows switching between battery banks without power interruption. Ignition protected—safe for installation aboard gasoline powered boats. Case design allows surface or rear panel mounting. FULL SPECIFICATIONS PART NUMBER: BS-9001E SWITCH TYPE: Selector 4 Position COLOR: RED SWITCH POSITIONS: 4 BATTERY COMBINE: YES ALTERNATOR FIELD DISCONNECT: NO MAXIMUM VOLTAGE: 32V DC TERMINAL STUD TORQUE: 140 in-lb (15.82 Nm) CONTINUOUS RATING: 350A INTERMITTENT RATING: 600A (5 min) CRANKING RATING – 30 SEC: 1200A BATTERY INPUTS: 2 CABLE CLEARANCE FOR 4/0 AWG CABLES: 1.10in (27.94 mm) CABLE SIZE TO MEET RATINGS: 4/0 AWG (120mm²) MOUNTING HOLES: Accept 1/4″ (M6) Screw STUD MATERIAL: TINNED COPPER TERMINAL STUD SIZE: 3/8″ – 16 (M10) WEIGHT: 1.30 lb (0.59 kg) OVERALL DIMENSIONS (LENGTH x WIDTH x HEIGHT): 84mm x 162mm x 217mm
