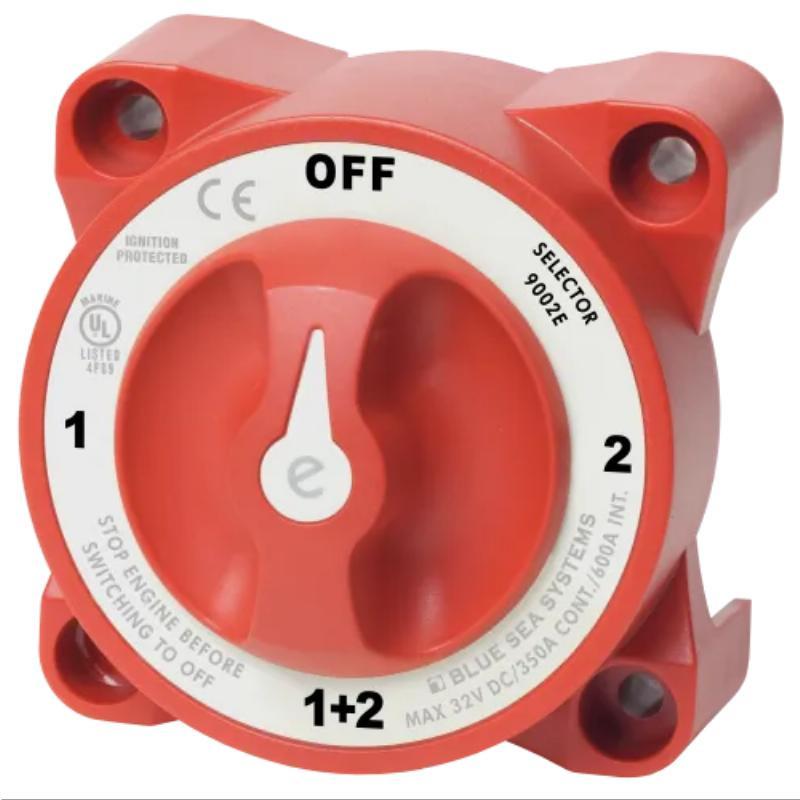

Description BLUE SEA SYSTEMS e-Series Battery Switch with AFD – Selector 4 Position / BS-9002E Switches a single battery to a single load group. HIGHLIGHTS Includes AFD (Alternator Field Disconnect). Ignition protected—safe for installation aboard gasoline powered boats. Case design allows surface or rear panel mounting. FULL SPECIFICATIONS PART NUMBER: BS-9002E SWITCH TYPE: Selector 4 Position COLOR: RED SWITCH POSITIONS: 4 BATTERY COMBINE: YES ALTERNATOR FIELD DISCONNECT: YES MAXIMUM VOLTAGE: 32V DC TERMINAL STUD TORQUE: 140 in-lb (15.82 Nm) CONTINUOUS RATING: 350A INTERMITTENT RATING: 600A (5 min) CRANKING RATING – 30 SEC: 1200A BATTERY INPUTS: 2 CABLE CLEARANCE FOR 4/0 AWG CABLES: 1.10in (27.94 mm) CABLE SIZE TO MEET RATINGS: 4/0 AWG (120mm²) MOUNTING HOLES: Accept 1/4″ (M6) Screw STUD MATERIAL: TINNED COPPER TERMINAL STUD SIZE: 3/8″ – 16 (M10) WEIGHT: 1.30 lb (0.59 kg) OVERALL DIMENSIONS (LENGTH x WIDTH x HEIGHT): 85mm x 161mm x 214mm
