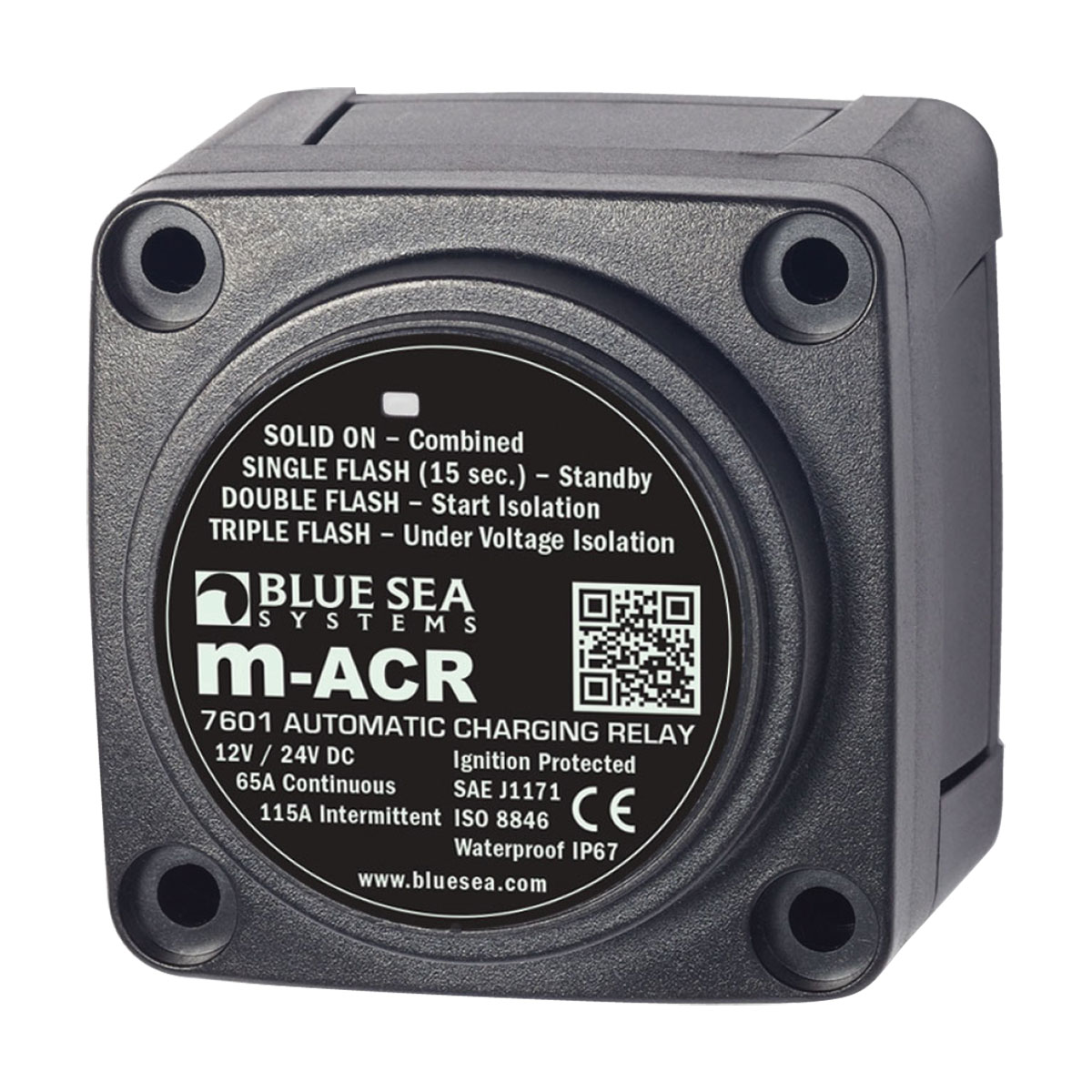

Description BLUE SEA SYSTEMS M-ACR Automatic Charging Relay / BS-7601 The Mini Automatic Charging Relay (M-ACR) is designed to manage the charging current from alternators up to 65 Amps found on most outboards and many inboard engines. Start Isolation (SI) protects sensitive electronics by temporarily isolating house loads from the engine circuit during engine cranking, protecting the house circuit from voltage sags and spikes. The compact design allows for three mounting styles: surface, rear, or panel mount. The M-ACR is also available as a module in a Custom 360 Panel. HIGHLIGHTS Senses charging on two battery banks Pull off and snap on insulating cover LED indicates ACR status 1 ∕4″ x .032″ male quick connect terminal for ground 7∕ 16″ (11 mm) stud length to accept multiple cable terminals Waterproof – rated IP67 for temporary immersion SPECIFICATIONS PART NUMBER: BS-7601 NOMINAL VOLTAGE: 12V DC, 24V DC START ISOLATION: YES AMPERAGE OPERATING CURRENT: 90mA (Combine), 15mA (Open) TERMINAL STUD TORQUE: 60 in-lb (6.78 Nm) CONTINUOUS RATING: 65A INTERMITTENT RATING: 115A (5 min) CABLE SIZE TO MEET RATINGS: 6 AWG MAXIMUM CABLE SIZE: 1/0 AWG STUD MATERIAL: Tinned Brass TERMINAL STUD SIZE: 1/4″ – 20 (M6) RELAY CONTACT POSITION COMBINE 30 SEC: 13.6V DC OPEN 10 SEC: 12.35V DC OPEN 30 SEC: 12.75V DC OPEN HIGH: 16.0V UNDERVOLTAGE LOCKOUT : 9.5V – (As a safety feature, some ACRs prevent combining into a severely discharged battery. A dual-sensing ACR will monitor the voltage on both batteries and will not connect if either battery is below the undervoltage lockout level. Use caution when combining into a battery with extremely low voltage, because this might represent a faulty battery or a problem elsewhere in the system.) WEIGHT: 0.80 lb (0.36 kg) OVERALL DIMENSIONS (LENGTH x WIDTH x HEIGHT): 99mm x 154mm x 73mm
