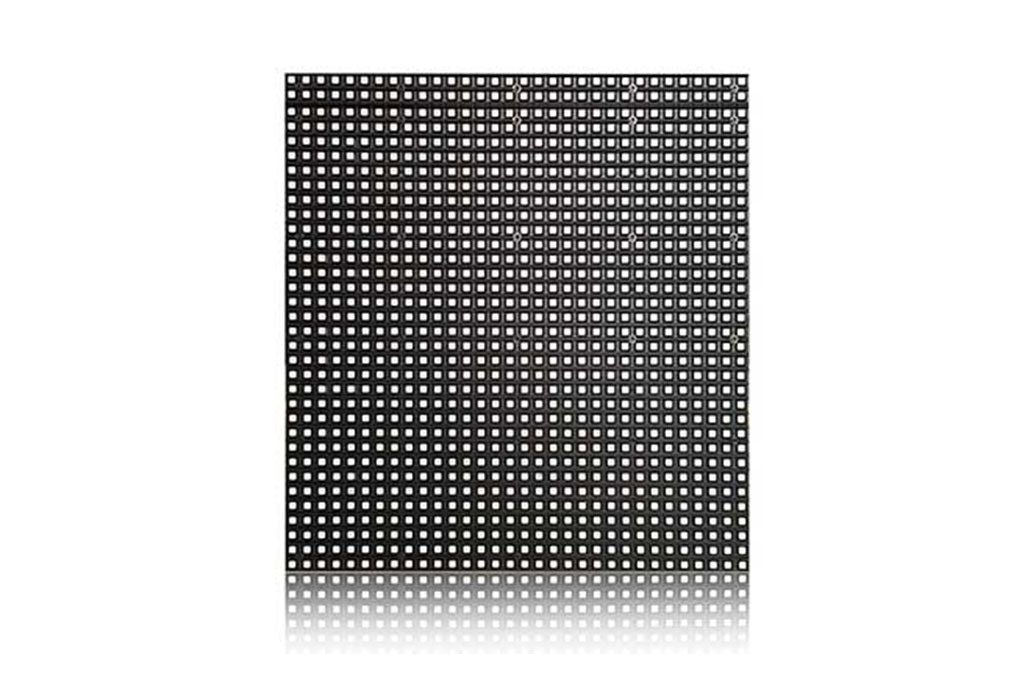

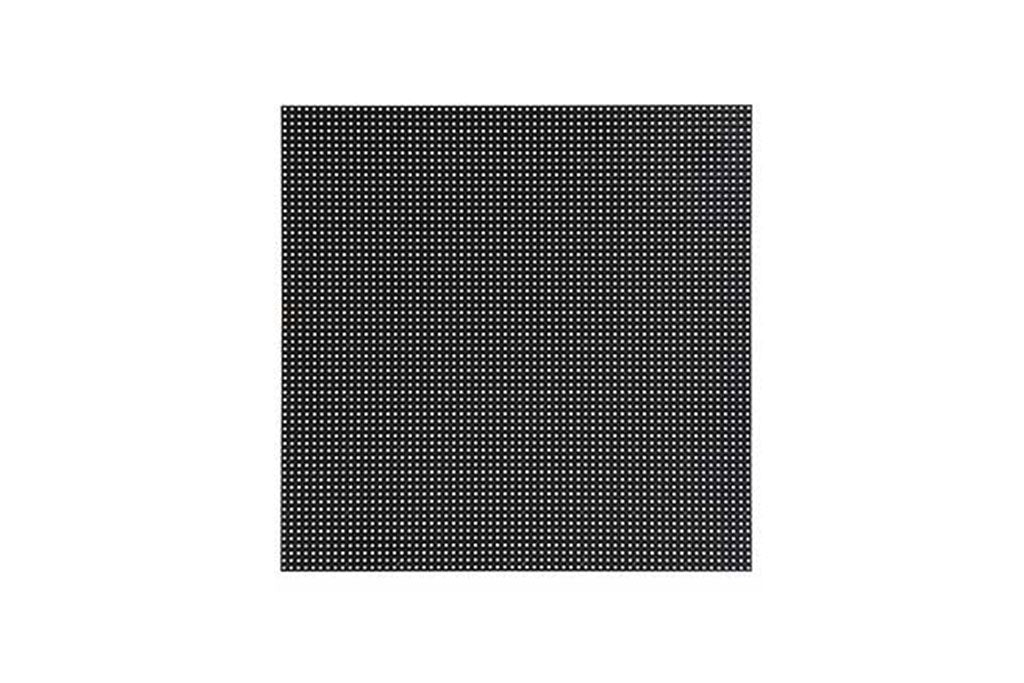

P2.9 Front Service LED Module Outdoor

P2.9 Front Service LED Module Outdoor Technical Specifications: Pixel Information Pixel Pitch 2.9mm Pixel Density 10000dots/m2 Pixel Configuration SMD3535 LED Wavelength Red:615 nm – 635 nm Green:520 nm – 535 nm Blue:465 nm – 475 nm LED Module Size(mm) 320(Width) * 320(Height) Resolution 64 (Width) * 64(Height) Power Input Voltage 100-240V AC. 50/60Hz Max Power Consumption 800 Watt/sqm Avg. Power Consumption 350 Watt/sqm Brightness 5000cd/m2 Brightness Uniformity Luminance Discrepancy < 5% Best Viewing Angle Horizontal:140°. Vertical:140° Ambient Conditions Temperature Range Working:-20deg. to 65deg Operating Humidity 10%-90%RH Ingression Protection Grade IP68 Processing Scanning Mode 1/16scan Refresh Rate >1920Hz. Adjustable(depends on control system) Signal Input DVI. Composite Video for Live Video Supported Networking Through LAN/WAN. RS 232/RS485 Controller Linsn or Nova Notice before order 1) The Parts included are the LED module, the signal cable between the modules, and the power cable between the module and the power supply. 2) Buy modules of the same batch: To avoid brightness and color differences on one screen, you must buy modules of the same batch. You must buy the modules for one screen in one order from us. 3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you use our LED modules to replace existing ones. 4) Tariff: Our price does not include any tariffs or duties at the destination. You should do import customs clearance and pay all tariffs or duties locally.
