Seastar Cable Steering Quick Connect 14Ft SSC6214

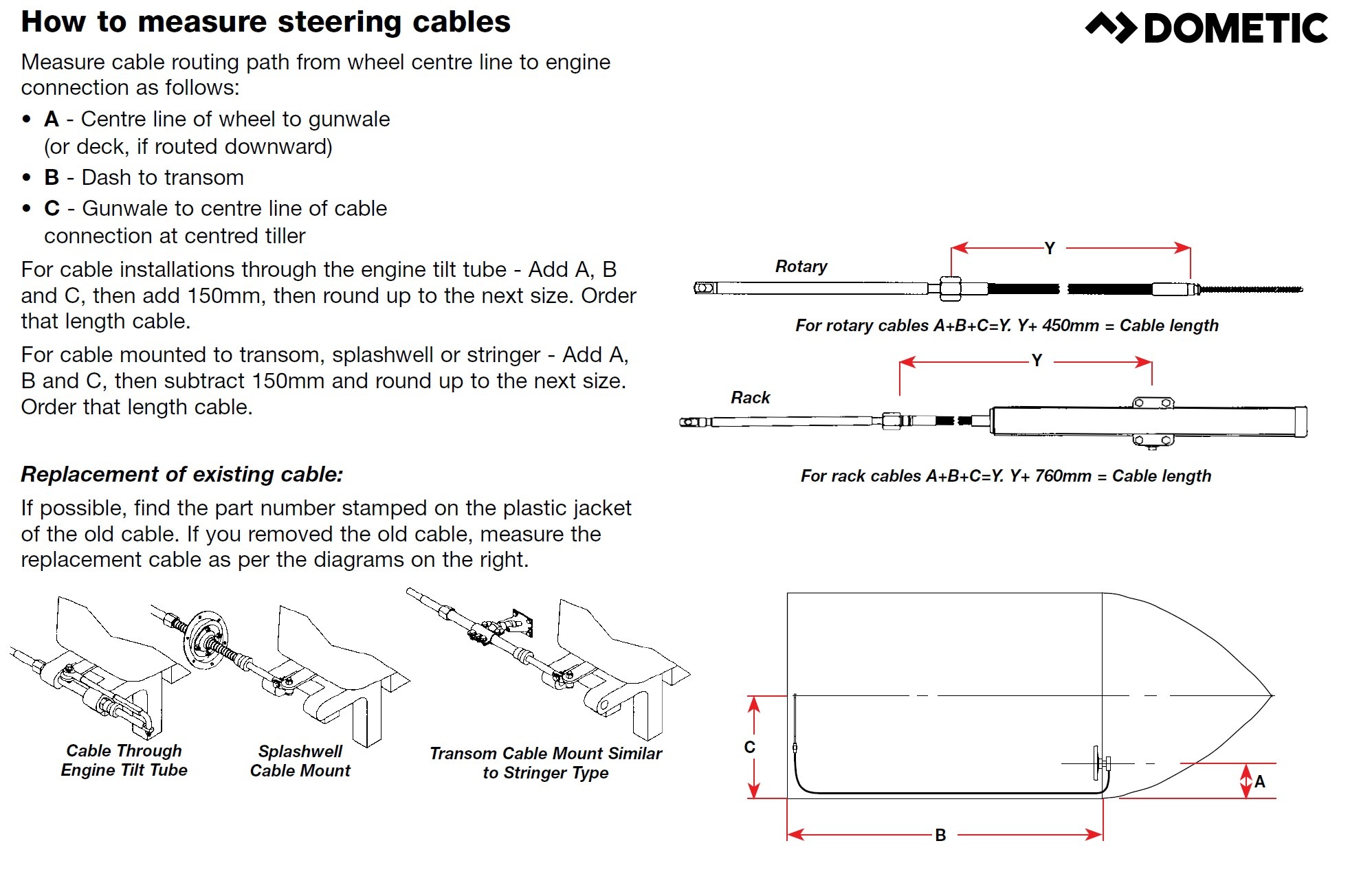

Description Seastar Quick Connect Steering Cable 4.27m (14FT) SSC6214 SSC62 Type push in quick connect cables No tools required: Cable connects via a quick connect hand pin that is easy to remove and replace. Material: Stainless steel cable outlet end minimizes corrosion. Convenient 7/8″ tilt tube mount nut as per ABYC, NmmA, and BIA standards. Compatibility: Fits directly to TFX rotary helms with BLA codes: 280132 280134 280144 280232 280234 280242 280250 280251 Commonly known as Safe T II QC or Quick Connect and 4.2 nfb tilt or standard helms. Specifications Minimum bend radius: 200mm Minimum channel thickness: 23mm How to Measure Cable Length Length is measured from the helm insert nut where the pin holds the cable to the tilt tube attachment nut plus 450mm. Y = 450mm cable length Measure A: Centre of steering wheel to gunwale Measure B: Dash to transom Measure C: Gunwale to centre of transom Cable Length for Transom Stringer and Splashwell Mount: A B C – 150mm Cable Length for Tilt Tube Mount: A B C 150mm Note: Also compatible as a replacement cable for SSC62. Quick Connect Steering Cable 4.27m (14FT)
