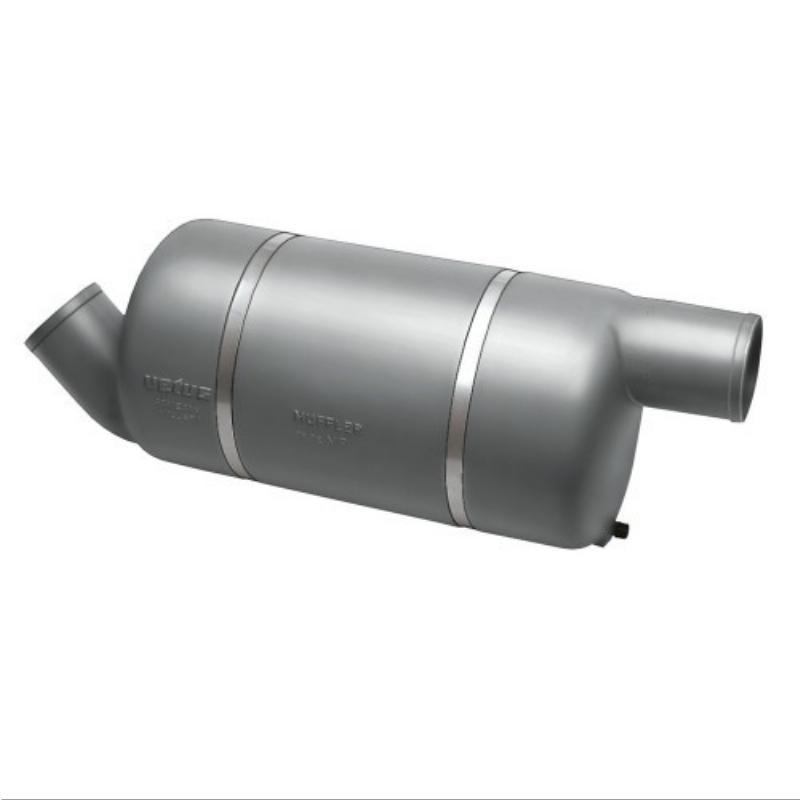

VETUS Exhaust Muffler – Type MF in 13 Litres / MF090

Description VETUS Exhaust Muffler – Type MF in 13 Litres / MF090 This exhaust muffler is especially developed for fast craft with powerful engines. By using one of these compact mufflers, you have tremendous reduction of exhaust noise with minimal back pressure. All parts are made of synthetic materials, corrosion free and light weight. The transom connections for this system are available in stainless steel (AISI 316) or reinforced black plastic. Waterlock type MV and the transom connection are provided with a check valve which prevents the seawater from flowing into the engine. For hose diameters Ø 90, 102, 127 and 152 mm Comes with stainless steel (AISI 316) mounting brackets SPECIFICATIONS PART NUMBER: VTS-MF090 HOSE DIAMETER (D): 90mm DIAMETER (H): 210mm LENGTH (L): 728mm CAPACITY: 13L OTHER AVAILABLE EXHAUST SYSTEMS IN TYPE MF : MF100 MF125 MF150 (See complete specifications in the table below.) TYPE CAPACITY SIZE A – LENGTH SIZE B – HEIGHT INTERNAL DIAMTER (D) (mm) MF090 13 Liters 90mm 210mm 728mm MF100 13 Liters 100mm 210mm 735mm MF125 43.5mm 125mm 320mm 940mm MF150 43.5mm 150mm 320mm 959mm OVERALL PRODUCT SIZE (L/W/H): 454mm x 249mm x 175mm NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock. VETUS plastic muffler type MF90 265x359x745
