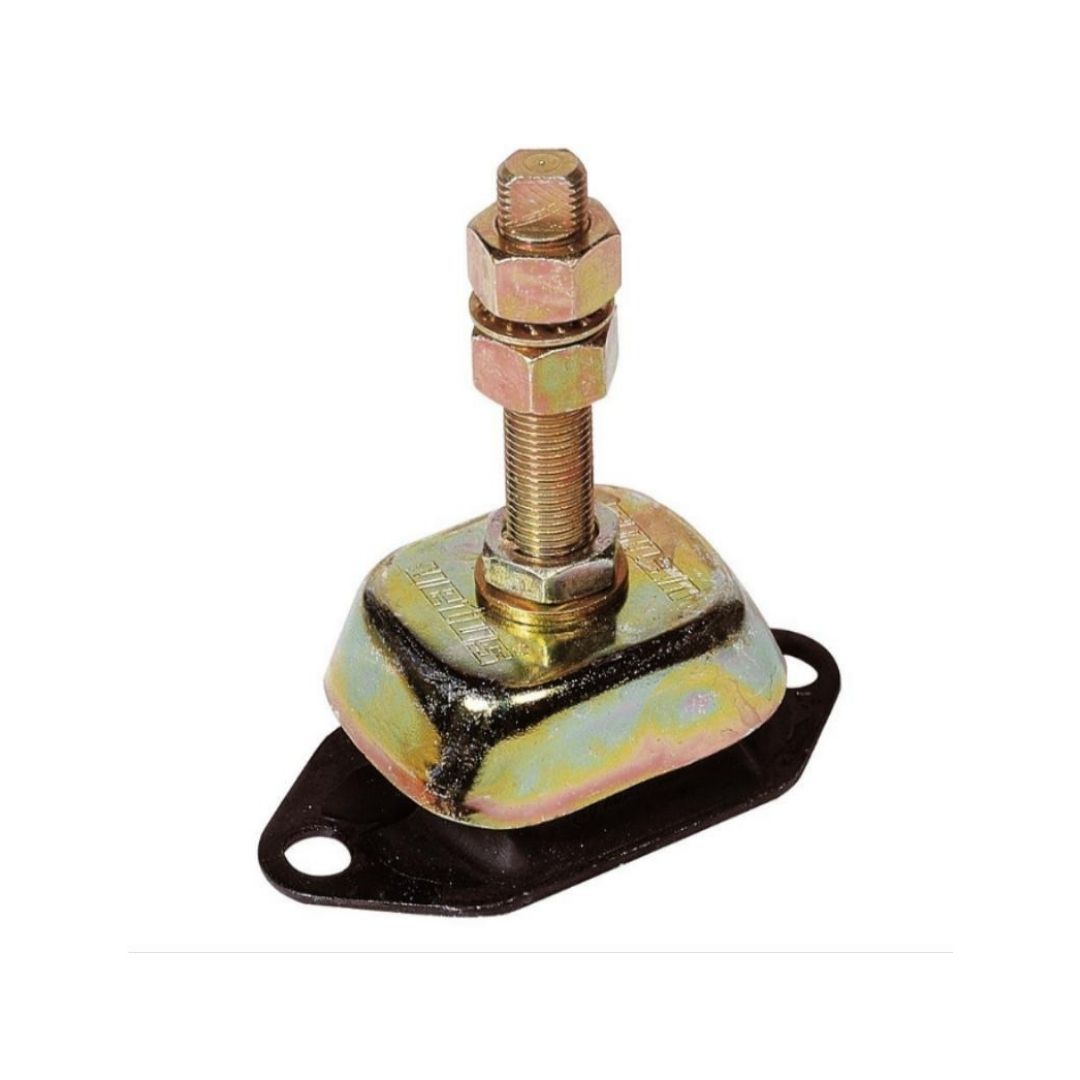

VETUS Flexible Engine Mount – Type K (Max Load 50-100kg)

Description VETUS Flexible Engine Mount – Type K (Max Load 50-100kg) Flexible Engine Mount – K Type – For Smaller Engines up to ± 60 kW (80 hp). This type is suitable for smaller engines up to approximately 60 kW (80 hp). STIFFNESS RATIO: See complete specifications in the table below. PART NUMBER MAX LOAD (STATIC & DYNAMIC) MAX COMPRESSION (STATIC & DYNAMIC) MINIMUM LOAD (STATIC) MINIMUM COMPRESSION (STATIC) HARDNESS IN SHORE KSTEUN50V 50kg 4mm 25kg 2mm 45° KSTEUN75V 75kg 4mm 38kg 2mm 55° KSTEUN80V 80kg 4mm 40kg 2mm 60° KSTEUN80V 100kg 4mm 50kg 2mm 65° The torque of an engine is one of the deciding factors for determination of the load applied to the engine mounts. When more powerful engines are installed, it is important to use the following formula to define the load per support in kilograms (4 supporting points). engine weight in kg kW x 487 x reduction of gearbox = max. load per support in kg number of supports engine revs/min. x centre to centre spacing in metres of the longitudinal engine bearers NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock.
