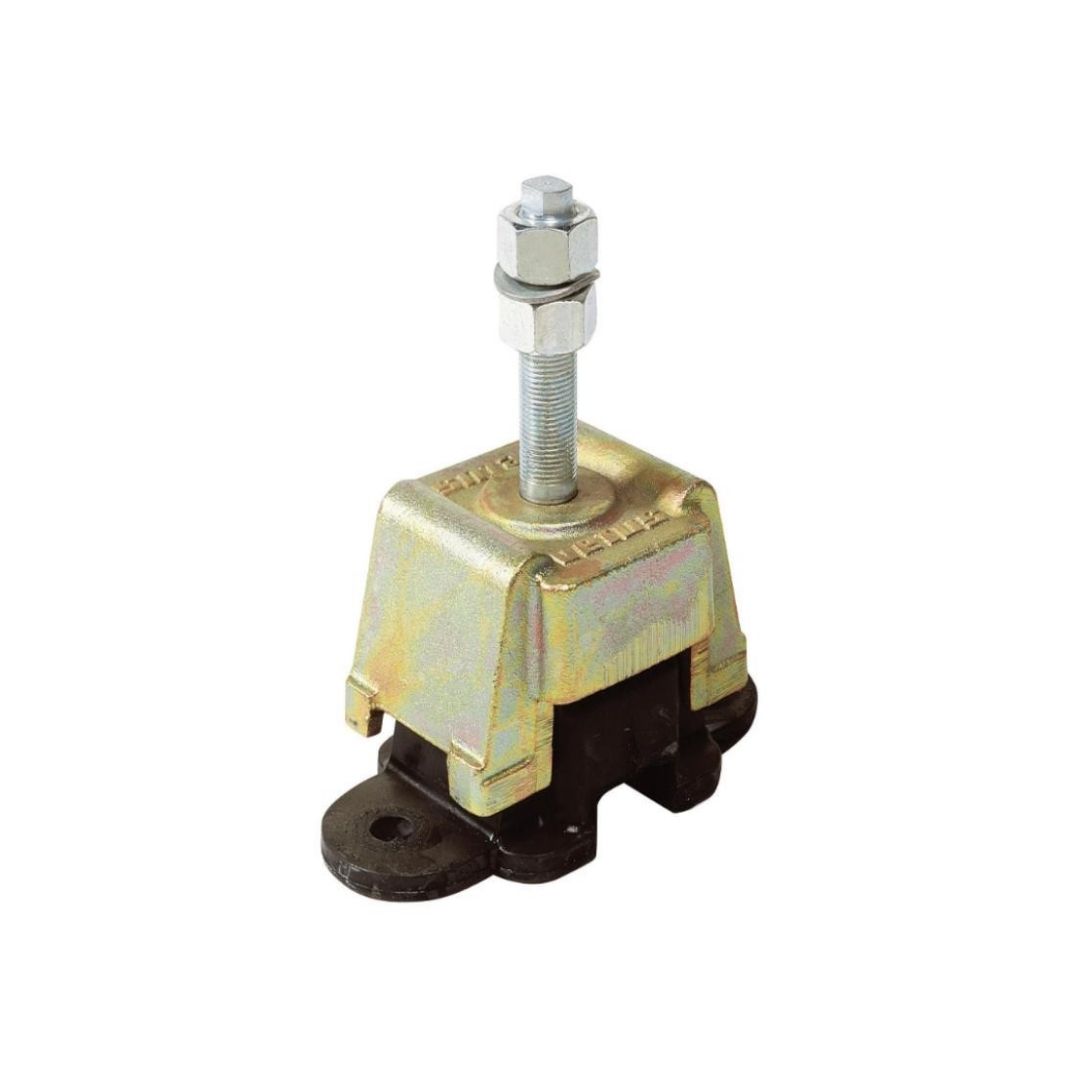

VETUS Flexible Engine Mount – Type LMX (Max Load 140-500kg)

Description VETUS Flexible Engine Mount – Type LMX (Max Load 140-500kg) This type has been designed with particular regard to the power to weight ratio of modern diesel engines. The weight of an engine, in comparison to its thrust, has become lower and lower. Type LMX guarantees optimum damping of vibrations, even at idling revs. It has a very high horizontal and aft stiffness which allows the acceptance of considerable thrust. The cushioning of vibrations in horizontal direction athwart-ships is of equal excellence. STIFFNESS RATIO VERTICAL: 1 ATHWART SHIPS: 1 FORE AND AFT: 7 See complete specifications in the table below. TYPE STIFFNESS RATIO – VERTICAL STIFFNESS RATIO – ATHWART SHIPS STIFFNESS RATIO – FORE AND AFT MINIMUM LOAD (KG) – STATIC MINIMUM COMPRESSION (mm) – STATIC MAXIMUM LOAD (KG) – STATIC DYNAMIC MAXIMUM COMPRESSION (mm) – STATIC DYNAMIC HARDNESS IN ° SHORE LMX140 1 1 7 85kg 3mm 140kg 5mm 35° LMX210 1 1 7 125kg 3mm 210kg 5mm 45° LMX340 1 1 7 205kg 3mm 340kg 5mm 55° LMX500 1 1 7 300kg 3mm 500kg 5mm 65° The torque of an engine is one of the deciding factors for determination of the load applied to the engine mounts. When more powerful engines are installed, it is important to use the following formula to define the load per support in kilograms (4 supporting points). engine weight in kg kW x 487 x reduction of gearbox = max. load per support in kg number of supports engine revs/min. x centre to centre spacing in metres of the longitudinal engine bearers OVERALL PRODUCT SIZE (L/W/H): 181mm x 89mm x 180mm NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock.
